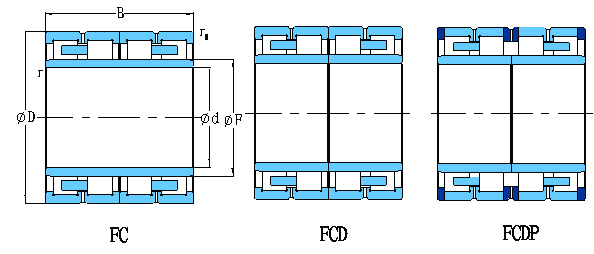

四列圓柱滾子軸承主要用于重型機械,如用在初軋機、型材軋機、板材軋機等軋機的支承輥上。四列圓柱滾子軸承依據外圈有無擋邊, 內圈是一個還是兩個,可分為FC型、FCD型和FCDP型。還有一些內孔是錐孔的結構形式。
所有類型的四列圓柱滾子軸承都是只能承受徑向載荷,所以要與止推軸承配套使用,如角接觸球軸承、圓錐滾子軸承等。
|
外形尺寸
(mm)
|
額定載荷
(kN)
|
軸承型號
|
重量
(kg)
|
d
|
D
|
B
|
F
|
r
|
r1
|
Cr
|
C0r
|
|
|
|
|
|
|
min
|
min
|
|
|
|
≈
|
200
|
290
|
192
|
226
|
2.5
|
2.5
|
1430
|
3450
|
FC 4058192
|
42.5
|
210
|
290
|
192
|
236
|
2.5
|
2.5
|
1365
|
3565
|
FC 4258192
|
39.5
|
220
|
310
|
192
|
246
|
2.5
|
2.5
|
1500
|
3760
|
FC 4462192
|
46.9
|
220
|
310
|
225
|
245
|
2.5
|
2.5
|
1695
|
4410
|
FCD 4462225
|
54.9
|
220
|
320
|
160
|
245
|
3
|
3
|
1385
|
3165
|
FC 4464160
|
46.5
|
220
|
320
|
210
|
248
|
2.5
|
2.5
|
1710
|
4155
|
FCD 4464210
|
60.5
|
230
|
330
|
206
|
260
|
2.5
|
2.5
|
1720
|
4245
|
FCD 4666206
|
58.3
|
240
|
330
|
220
|
270
|
3
|
3
|
1735
|
4665
|
FCD 4866220
|
56.8
|
240
|
340
|
220
|
268
|
3
|
3
|
1850
|
4710
|
FCD 4868220
|
63.6
|
240
|
360
|
220
|
272
|
2.5
|
2.5
|
2060
|
4800
|
FCD 4872220
|
79.6
|
250
|
350
|
220
|
278
|
3
|
3
|
1885
|
4885
|
FCD 5070220
|
66
|
260
|
360
|
260
|
287
|
2.5
|
2.1
|
2185
|
5985
|
FCD 5272260
|
81.5
|
260
|
370
|
220
|
292
|
3
|
3
|
2030
|
5110
|
FCD 5274220
|
77.1
|
260
|
380
|
280
|
294
|
3
|
3
|
2580
|
6560
|
FCD 5276280
|
109
|
260
|
400
|
290
|
296
|
4
|
2
|
2910
|
6915
|
FCD 5280290
|
135
|
280
|
350
|
208
|
298
|
2.5
|
2.5
|
1540
|
4995
|
FCD 5670208
|
46.4
|
280
|
390
|
220
|
312
|
3
|
3
|
2105
|
5465
|
FCD 5678220
|
81.3
|
280
|
390
|
275
|
312
|
2.5
|
2.5
|
2505
|
6830
|
FCD 5678275
|
105
|
280
|
420
|
280
|
323
|
4
|
4
|
2930
|
7130
|
FCD 5684280
|
139
|
300
|
400
|
300
|
328
|
3
|
3
|
2620
|
7875
|
FCD 6080300
|
104
|
300
|
420
|
240
|
332
|
3
|
3
|
2455
|
6400
|
FCD 6084240
|
105
|
300
|
420
|
300
|
332
|
3
|
3
|
2920
|
7995
|
FCD 6084300
|
130
|
300
|
430
|
240
|
338
|
3
|
3
|
2570
|
6445
|
FCD 6086240
|
115
|
300
|
460
|
270
|
344
|
3
|
3
|
3190
|
7420
|
FCD 6092270
|
162
|
320
|
450
|
240
|
358
|
3
|
3
|
2655
|
6835
|
FCD 6490240
|
125
|
320
|
460
|
340
|
360
|
3
|
3
|
3635
|
9750
|
FCD 6492340
|
178
|
330
|
440
|
200
|
360
|
3
|
3
|
2115
|
5775
|
FC 6688200
|
83.6
|
330
|
460
|
340
|
365
|
4
|
4
|
3530
|
9955
|
FCD 6692340
|
181
|
340
|
480
|
350
|
378
|
4
|
4
|
3830
|
10605
|
FCD 6896350
|
211
|
360
|
480
|
290
|
388
|
3
|
3
|
3100
|
9135
|
FCD 7296290
|
148
|
360
|
510
|
370
|
400
|
4
|
4
|
4280
|
11880
|
FCD 72102370
|
244
|
360
|
510
|
400
|
397
|
5
|
5
|
4545
|
12845
|
FCD 72102400
|
262
|
370
|
480
|
230
|
400
|
5
|
5
|
2490
|
7380
|
FCD 7496230
|
106
|
370
|
480
|
250
|
401
|
3
|
3
|
2660
|
8025
|
FCD 7496250
|
118
|
370
|
520
|
380
|
409
|
5
|
5
|
4430
|
12510
|
FCD 74104380
|
256
|
370
|
520
|
400
|
409
|
5
|
5
|
4610
|
13170
|
FCD 74104400
|
273
|
380
|
520
|
280
|
417
|
4
|
4
|
3395
|
9385
|
FCD 76104280
|
174
|
380
|
520
|
290
|
418
|
4
|
4
|
3490
|
9720
|
FCD 76104290
|
185
|
380
|
520
|
300
|
416
|
4
|
4
|
3580
|
10055
|
FCD 76104300
|
210
|
380
|
540
|
400
|
422
|
4
|
4
|
4850
|
13570
|
FCD 76108400
|
325
|
400
|
560
|
400
|
446
|
5
|
5
|
4970
|
14215
|
FCD 80112400
|
303
|
400
|
560
|
410
|
445
|
4
|
4
|
5070
|
14575
|
FCD 80112410
|
349
|
400
|
590
|
420
|
450
|
4
|
4
|
5715
|
15185
|
FCD 80118420
|
399
|
420
|
560
|
280
|
457
|
4
|
4
|
3560
|
10290
|
FCDP 84112280
|
189
|
420
|
580
|
230
|
466
|
4
|
4
|
3310
|
8545
|
FCDP 84116230
|
181
|
420
|
600
|
440
|
470
|
6
|
2.5
|
5875
|
16530
|
FCDP 84120440
|
423
|
420
|
620
|
400
|
478
|
5
|
5
|
5810
|
15190
|
FCDP 84124400
|
410
|
440
|
620
|
450
|
487
|
5
|
5
|
6115
|
17630
|
FCDP 88124450
|
450
|
460
|
620
|
400
|
502
|
4
|
4
|
5315
|
16155
|
FCDP 92124400
|
383
|
460
|
620
|
460
|
502
|
4
|
4
|
5925
|
18575
|
FCDP 92124460
|
417
|
460
|
650
|
470
|
509
|
5
|
5
|
6675
|
19270
|
FCDP 92130470
|
540
|
470
|
660
|
470
|
517
|
5
|
5
|
6745
|
19650
|
FCDP 94132470
|
529
|
480
|
600
|
236
|
510
|
3
|
3
|
3035
|
9715
|
FCDP 96120236
|
155
|
480
|
650
|
420
|
523
|
5
|
5
|
5840
|
17725
|
FCDP 96130420
|
423
|
480
|
680
|
420
|
528
|
6
|
6
|
7200
|
19000
|
FCDP 96136420
|
500
|
480
|
680
|
500
|
532
|
6
|
6
|
7365
|
21410
|
FCDP 96136500
|
640
|
500
|
690
|
470
|
547
|
5
|
5
|
6945
|
20785
|
FCDP 100138470
|
590
|
500
|
690
|
510
|
552
|
5
|
5
|
7400
|
22555
|
FCDP 100138510
|
640
|
500
|
700
|
515
|
554
|
5
|
5
|
7690
|
22880
|
FCDP 100140515
|
680
|
500
|
710
|
480
|
558
|
6
|
6
|
7490
|
21425
|
FCDP 100142480
|
675
|
500
|
720
|
530
|
568
|
5
|
5
|
8320
|
23765
|
FCDP 100144530
|
780
|
510
|
670
|
320
|
554
|
5
|
5
|
4695
|
14210
|
FCDP 102134320
|
335
|
510
|
700
|
540
|
558
|
6
|
6
|
7810
|
24315
|
FCDP 102140540
|
689
|
520
|
700
|
540
|
564
|
6
|
6
|
7635
|
24640
|
FCDP 104140540
|
658
|
520
|
720
|
550
|
566
|
5
|
5
|
8250
|
25325
|
FCDP 104144550
|
715
|
520
|
735
|
535
|
574.5
|
5
|
5
|
8425
|
24800
|
FCDP 104147535
|
740
|
530
|
700
|
540
|
574
|
6
|
6
|
7445
|
24965
|
FCDP 106140540
|
626
|
530
|
760
|
520
|
587
|
6
|
6
|
8655
|
24680
|
FCDP 106152520
|
800
|
530
|
780
|
570
|
601
|
6
|
6
|
9770
|
27290
|
FCDP 106156570
|
1010
|
550
|
800
|
520
|
622
|
6
|
6
|
9260
|
25735
|
FCDP 110160520
|
965
|
560
|
680
|
360
|
590
|
3
|
3
|
4545
|
17145
|
FCDP 112136360
|
265
|
570
|
800
|
514
|
626
|
2.5
|
6
|
8885
|
26055
|
FCDP 114160514
|
849
|
570
|
815
|
594
|
628
|
6
|
6
|
10320
|
30295
|
FCDP 114163594
|
1040
|
600
|
820
|
575
|
660
|
7.5
|
7.5
|
9675
|
30420
|
FCDP 120164575
|
941
|
600
|
870
|
540
|
672
|
7.5
|
7.5
|
10405
|
29125
|
FCDP 120174540
|
1150
|
600
|
870
|
640
|
672
|
7.5
|
7.5
|
11875
|
34515
|
FCDP 120174640
|
1330
|
610
|
870
|
660
|
680
|
9.5
|
7.5
|
11985
|
35990
|
FCDP 122174660
|
1400
|
640
|
880
|
600
|
700
|
6
|
6
|
10860
|
33925
|
FCDP 128176600
|
1150
|
650
|
920
|
670
|
723
|
7.5
|
4
|
12785
|
38835
|
FCDP 130184670
|
1500
|
650
|
920
|
680
|
723
|
7.5
|
7.5
|
12935
|
39415
|
FCDP 130184680
|
1510
|
650
|
920
|
690
|
723
|
7.5
|
7.5
|
13085
|
39995
|
FCDP 130184690
|
1550
|
660
|
820
|
440
|
702
|
5
|
4
|
6815
|
24865
|
FCDP 132164440
|
580
|
680
|
1020
|
650
|
803
|
6
|
6
|
14640
|
40185
|
FCDP 136204650
|
1970
|
680
|
1020
|
680
|
775
|
3
|
5
|
15165
|
42040
|
FCDP 136204680
|
2060
|
690
|
980
|
715
|
767.5
|
7.5
|
7.5
|
14440
|
44045
|
FCDP 138196715
|
1850
|
690
|
980
|
750
|
766
|
7.5
|
7.5
|
14990
|
46200
|
FCDP 138196750
|
1900
|
710
|
1000
|
715
|
787.5
|
9.5
|
6
|
14645
|
45195
|
FCDP 142200715
|
1900
|
725
|
1000
|
700
|
796
|
6
|
6
|
14100
|
44880
|
FCDP 145200700
|
1730
|
750
|
1000
|
670
|
813
|
6
|
6
|
13085
|
43965
|
FCDP 150200670
|
1520
|
760
|
1030
|
750
|
828
|
7.5
|
7.5
|
15045
|
50125
|
FCDP 152206750
|
2000
|
800
|
1080
|
700
|
878
|
7.5
|
7.5
|
14935
|
49185
|
FCDP 160216700
|
1950
|
800
|
1080
|
750
|
880
|
6
|
6
|
15755
|
52700
|
FCDP 160216750
|
2090
|
820
|
1130
|
800
|
903
|
7.5
|
7.5
|
17815
|
57995
|
FCDP 164226800
|
2450
|
820
|
1160
|
840
|
910
|
7.5
|
7.5
|
19545
|
61415
|
FCDP 164232840
|
2930
|
830
|
1080
|
710
|
896
|
6
|
6
|
14370
|
51165
|
FCDP 166216710
|
1780
|
840
|
1160
|
840
|
920
|
5
|
7.5
|
19080
|
62420
|
FCDP 168232840
|
2840
|
850
|
1150
|
650
|
941
|
9.5
|
9.5
|
15120
|
48560
|
FCDP 170230650
|
1980
|
850
|
1150
|
800
|
930
|
6
|
6
|
17770
|
59765
|
FCDP 170230800
|
2430
|
850
|
1150
|
840
|
928
|
6
|
6
|
18460
|
62755
|
FCDP 170230840
|
2640
|
850
|
1180
|
650
|
945
|
7.5
|
7.5
|
16015
|
48960
|
FCDP 170236650
|
2270
|
850
|
1180
|
850
|
940
|
7.5
|
7.5
|
19730
|
64025
|
FCDP 170236850
|
2980
|
900
|
1220
|
840
|
989
|
7.5
|
7.5
|
20600
|
72300
|
FCDP 180244840
|
2200
|
1000
|
1310
|
880
|
1080
|
9.5
|
9.5
|
21100
|
76560
|
FCDP 200262880
|
3260
|
1000
|
1360
|
800
|
1101
|
7.5
|
7.5
|
21410
|
70430
|
FCDP 200272800
|
3530
|
1030
|
1380
|
850
|
1124
|
7.5
|
7.5
|
22390
|
76710
|
FCDP 206276850
|
3800
|
1200
|
1590
|
1050
|
1305
|
7.5
|
7.5
|
30285
|
110020
|
FCDP 2403181050
|
6220
|
|
